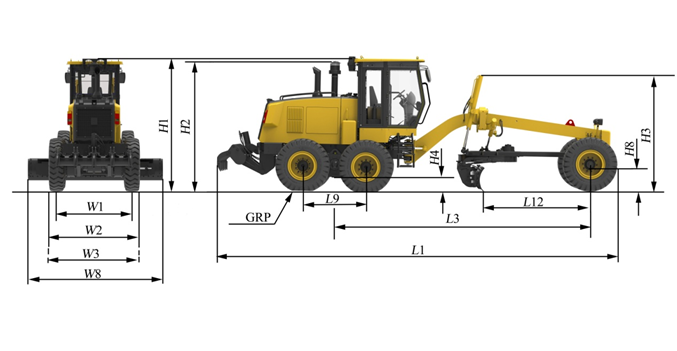

code name

name

size

code name

name

size

L1

Body Length

8970mm

W8

Blade Length

4270mm

L3

Front and rear wheel center wheel base spacing

6219mm

H1

The height of the cab top from the ground

3420mm

L9

Balance box center spacing

1538mm

H2

maximum height except the cab

3200mm

L12

Distance of the blade from the front wheel

2500

H3

The maximum height of the cylinder from the ground

2975mm

W1

Tire center line spacing

2156mm

H4

Rear bridge spacing above the ground

340mm

W2

Outside rear tire spacing

2625mm

H8

Front bridge distance above the ground

430mm

W3

Outer front tire spacing

2625mm

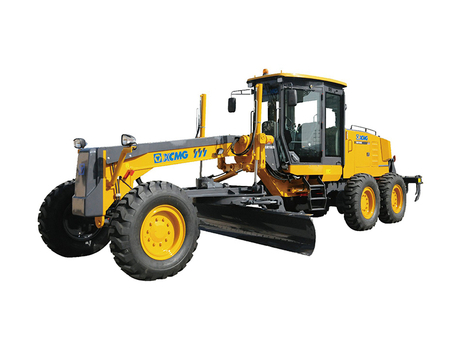

GR1653

GR1653

basic parameters

Engine

SC7H180.1G3

Rated Power/rev

132kW/2000rpm

Complete machine size(standard match)

8600×2625×3420 mm

Complete machine weight (standard match)

14500 kg

tyre size

17.5-25

Clearance to floor(front axle)

430mm

Wheel distance

2156mm

Distance between front axle and rear axle

6219 mm

Distance between middle axle and rear axle

1538 mm

performance parameter

Forward speed

5 、 8 、 11 、 19 、 23 、 38km/h

Back speed

5 、 11 、 23km/h

Pull power f= 0.75

≥ 77 kN

Max climb capability

≥ 25%

Wheel pressure

260kPa

Working system pressure

20MPa

Gearbox pressure

1.3 — 1.8Mpa

working parameter

Max. steering angle of front wheel

±48°

Max. inclined angle of front wheel

±17°

Max. swing angle of front axle

±15°

Max. swing angle of balance box

前 15° 、后 15°

Front 15°, rear 15°

Max. steering angle of frame

±27°

Min. turning radius

7.1m

Max. hoisting height

400mm

Max. shoveling depth

500mm

Max. incline angle

90°

Cutting angle

28° — 70°

Turning angle

360°

Length x height

3660×610mm/3965×610mm

Quantity of adding oil

Cooling fluid

50L

fuel tank

280L

engine

24L

transmission

38L

balancing box

46L

driving axle

28L

hydraulic oil

110L
