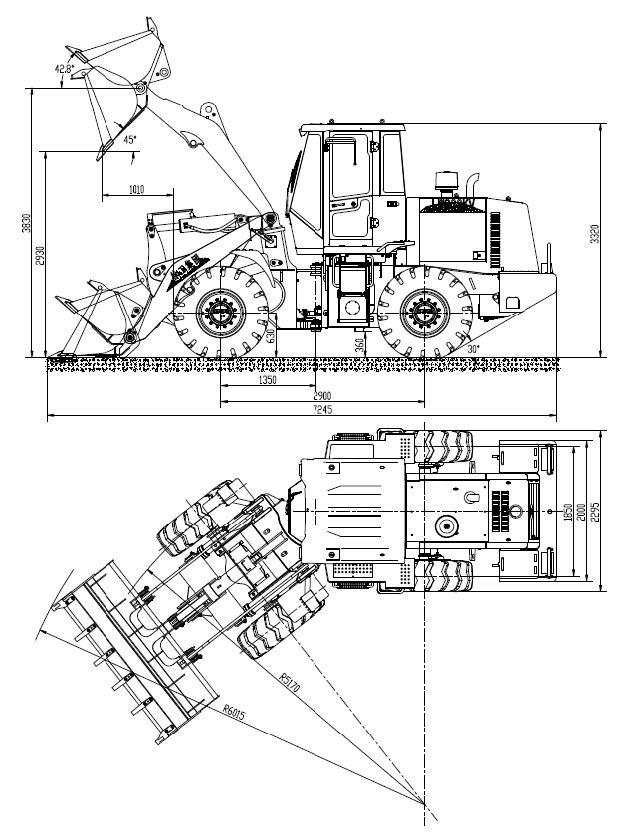

Machine Overall Dimensions
Main Technical Specification (Standard Configuration)
Table1
Parameter Name | Parameter Value (mm) | Remarks |
|---|---|---|
Overall length | 7245 | Bucket put flat on the ground |
Machine width | 2350 | Outside of Wheel |
Bucket width | 2482 |
|
Overall height | 3320 | Cab Roof |
Axle base | 2900 |
|
Tread | 1850 |
|
Minimum ground clearance | 360 |
|
Table2
Parameter Name | Parameter Value | Remarks | ||
Rated working load (kg) | 3000 |
| ||
Standard bucket capacity (m3) | 1.8 |
| ||
Operating mass (kg) | 10800 ± 200 |
| ||
Maximum Design Speed | Gear I Speed (km/h) | 12 | Equipped with Planetary Transmission | |
Gear II Speed (km/h) | 38 | Equipped with Planetary Transmission | ||
Reverse Gear I Speed (km/h) | 16 | Equipped with Planetary Transmission | ||
Maximum traction force (kN) | 95 |
| ||
Maximum climbing capability (°) | 28 |
| ||
Highest dumping position | Dump Angle (°) | 45 |
| |
Dump Height (mm) | ≥ 2930 | Main blade | ||
Dump Reach (mm) | ≥ 1010 | Main blade | ||
Bucket breakout force (kN) | 130 |
| ||
Maximum digging depth (mm) | 40 | Bucket placed flat | ||
Boom lifting time (s) | ≤ 5.4 |
| ||
Fastest three cycle time (s) | ≤ 9.3 |
| ||
Minimum turning radius | Outside of Bucket (mm) | 6015 |
| |
Tire Center (mm) | 5170 |
| ||
Machine Steering Angle (°) | ±38 |
| ||
Tire specification | 17.5-25 |
| ||
Tire Inflating pressure | Front wheel (MPa) | 0.39 ± 0.01 |
| |
Rear wheel (MPa) | 0.33 ± 0.01 |
| ||
Note: The operating weight is for the standard machine in the following condition:
appropriate amount of all kinds of lubricant, full tank of fuel, and an operator with a weight of 75kg.
