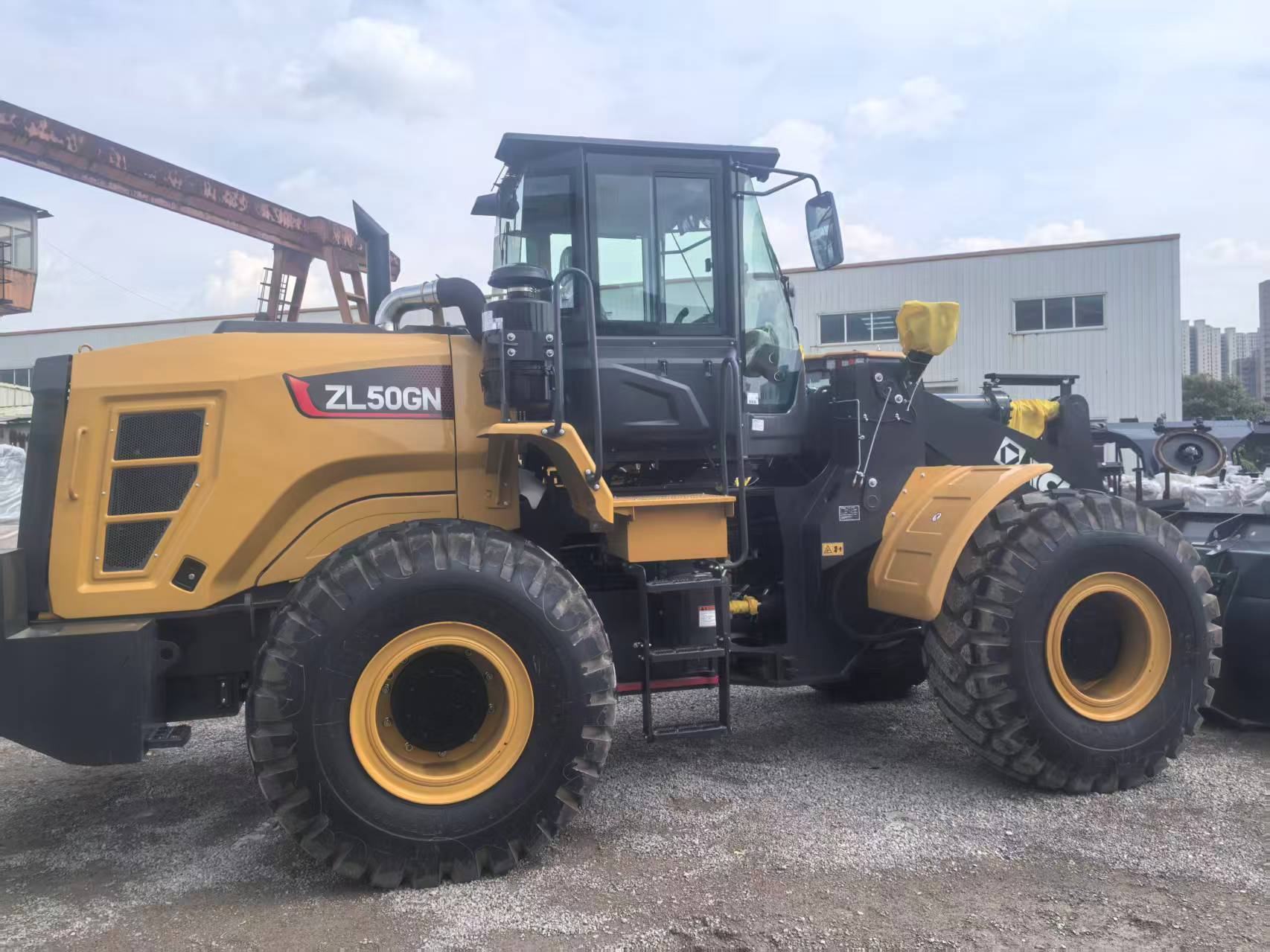

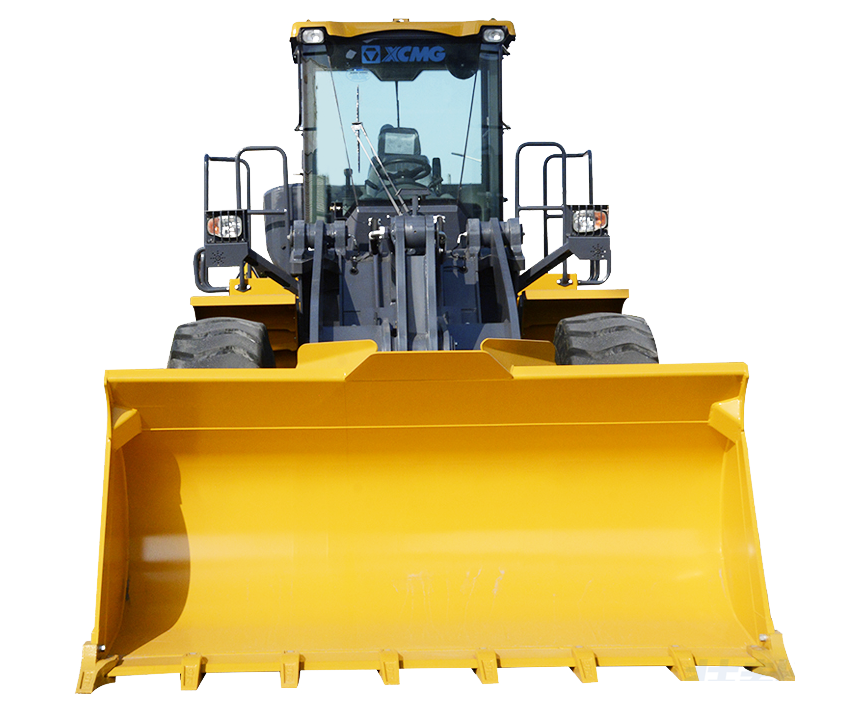

XCMG ZL50GN XC958 WHEEL LOADER
ZL50GN/XC958 is the most popular model of China’s 5t payloader, the latest cross-generation product developed, the first-choice equipment for the production organization in the fields of ports, mines, engineering constructions, and logistics.
Performance Highlights:
1. Heavy load for the rocky condition; the working device and front and rear frames feature a thick board of high strength, reasonable distribution, and strong carrying capacity.
2. The large rock bucket with a capacity of 2.5m³ is improved in terms of work efficiency and adaptation. The bucket teeth adopt the structure of a tooth holder and a sleeve. The cutting blade and bucket edge are equipped with a protection device, featuring excellent abrasion resistance and shock resistance.
3. The thickness of the front frame lug and baseboard is 70mm, and the thickness of the up and down articulated board is 30mm. The machine is superior among the products of the same kind in terms of structural strength and carrying capacity.
4.160kN breakout force handles all kinds of materials with ease,≥ and3.5m high dumping capacity handles the severe conditions with ease.
Item Name | Parameter value |
Rated load | 5000 kg |
Tipping load | 123 KN |
Bucket capacity | 3.0 m3 |
Bucket width | 3016 mm |
Unloading height | 3090 mm |
Unloading distance | 1130 mm |
Lifting height | 5370 mm |
Bucket lift time | ≤6 s |
Three items and time | ≤11 s |
Maximum lifting force | 170 kN |
Maximum traction force | 165±5 kN |
Weight of the whole machine | 17.5 T |
Articulation angle | ±35° |
Minimum turning radius (tire center) | 6400 mm |
Climbing capacity | 30° |
Minimum Ground Clearance | 450 mm |
Wheelbase | 3300 mm |
Wheelbase | 2250 mm |
Speed | Forward | First gear 0～11.5Km/ Second gear0～38Km/h |
Reverse | 0～16.5Km/h |
Engine model | WD10G220E23 |
Rated power | 162 KW |
Rated speed | 2000r/min |
Tire specification | 23.5-25-16PR |
Overall dimensions | L8165×W3016×H3485mm |
