| Quantity: | |
|---|---|

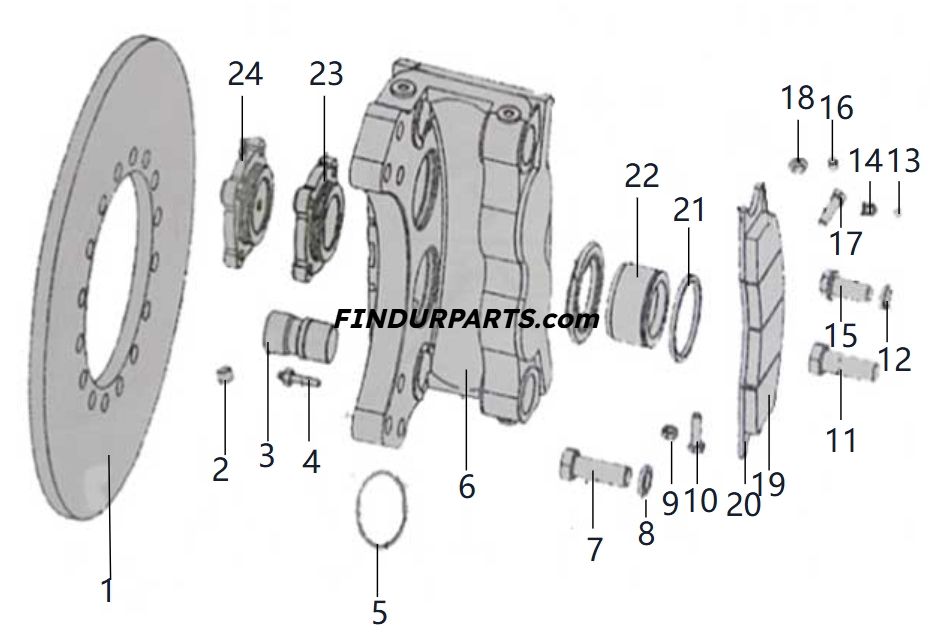

| Number | Parts Name | |
| 1 | SEPARATOR PLATE | |
| 2 | DEFLATING VALVE SHIELD | |
| 3 | PIN | Click to see details. |
| 4 | DEFLATING VALVE | |
| 5 | O-RING 75×3.1 | Click to see details. |
| 6 | CLAMP BODY | |
| 7 | BOLT M20×60 | |
| 8 | WASHER | |
| 9 | NUT | |
| 10 | BOLT M10×35 | |
| 11 | BOLT M20×55 | |
| 12 | WASHER18 | |
| 13 | STEEL BALL | |
| 14 | WASHER 10 | |
| 15 | BOLT M18×40 | |
| 16 | CYLINDRICAL PIN | |
| 17 | BOLT M10×35 | |
| 18 | PLUG | |
| 19 | FRICTION PLATE | |
| 20 | FRICTION CUSHION BASEPLATE | |
| 21 | SOMA钳密封包 | Click to see details. |
| 22 | PISTON | |
| 23 | OIL INLET CYLINDER COVER | Click to see details. |
| 24 | OIL SEAL CYLINDER COVER | Click to see details. |

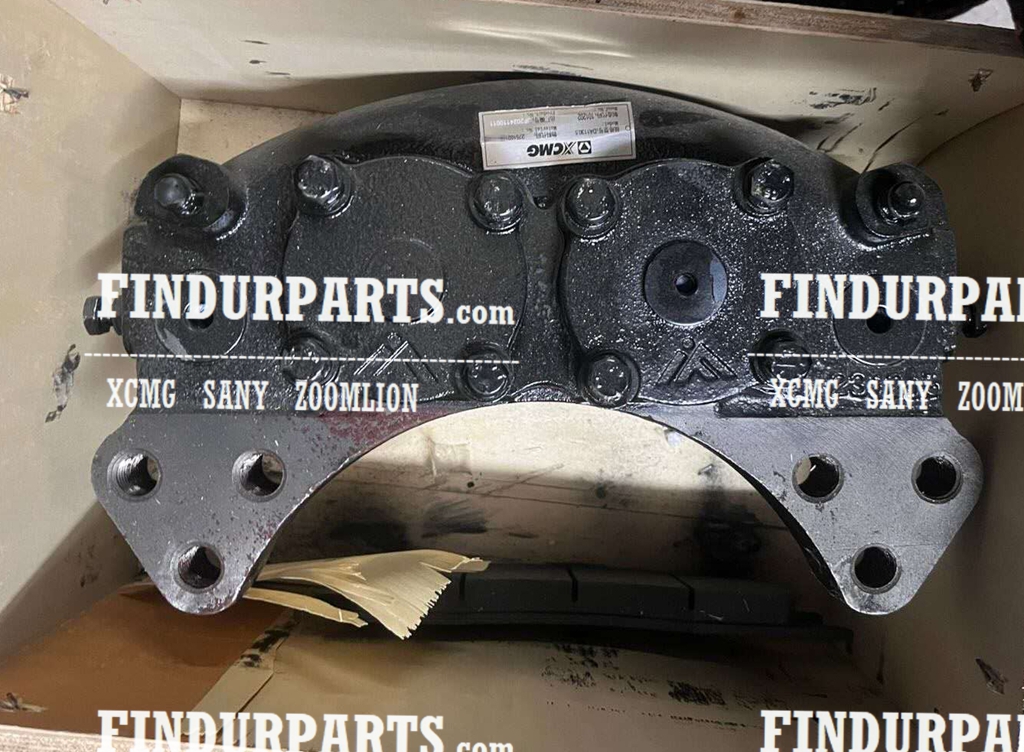

This is a complete disc brake assembly for the drive axle of your XCMG 3-ton wheel loader (models LW300FN, LW300KN, ZL30G). It provides reliable stopping power and safety for your loader during operation.
Need to upgrade or replace your loader's brakes? Contact us for pricing, compatibility verification, and expert support to get your machine back to work safely.
This resource is prepared by the Findurparts.com technical team. We provide not only knowledge but also reliable XCMG parts solutions based on this expertise for global clients. If you need to purchase or request a quote, you’ve come to the right place.
